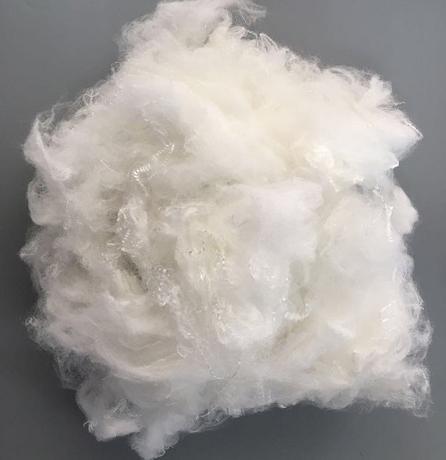

Feature of aramid :
1. Excellent high temperature resistance: it can work continuously at a temperature of 204℃, and the instantaneous working temperature can reach 240℃;
2. High dimensional stability: only 1% expansion rate at 230℃ high temperature, with high temperature stability;
3. Fire and flame retardant performance: it starts to decompose and carbonize at 400℃, the limiting oxygen index (LOI) is 30, and it does not self-ignite or support combustion;
4. Good chemical corrosion resistance: acid and alkali resistance and not easy to corrode.
Physical Properties :
Weight | Temperature | Air Permeability | Break Strength | Break Elongation |
400~600g/m2 | 204-250 Degree C | 15-18 m3.m2/min@200Pa | Warp>1000 Weft >1200 | Warp ≤35% Weft ≤ 50% |
Chemical Properties :
Acid Resistance | Alkali Resistance | Hydrolysis Resistance | Abrasion Resistance | Oxidation Resistance |
Good | Good | Moderate | Excellent | Poor |
Application:
1.Asphalt mixing plant
2.Cement Kiln
3. Chemical Plant
4. Foundry Plant
Packing and delivery :
Packing : 10-15 pcs per Carton ,Size : 44cm*47cm*50cm
Delivery : 15 working days after confirmed
Packing | Delivery |
Feature of aramid :
1. Excellent high temperature resistance: it can work continuously at a temperature of 204℃, and the instantaneous working temperature can reach 240℃;
2. High dimensional stability: only 1% expansion rate at 230℃ high temperature, with high temperature stability;
3. Fire and flame retardant performance: it starts to decompose and carbonize at 400℃, the limiting oxygen index (LOI) is 30, and it does not self-ignite or support combustion;
4. Good chemical corrosion resistance: acid and alkali resistance and not easy to corrode.
Physical Properties :
Weight | Temperature | Air Permeability | Break Strength | Break Elongation |
400~600g/m2 | 204-250 Degree C | 15-18 m3.m2/min@200Pa | Warp>1000 Weft >1200 | Warp ≤35% Weft ≤ 50% |
Chemical Properties :
Acid Resistance | Alkali Resistance | Hydrolysis Resistance | Abrasion Resistance | Oxidation Resistance |
Good | Good | Moderate | Excellent | Poor |
Application:
1.Asphalt mixing plant
2.Cement Kiln
3. Chemical Plant
4. Foundry Plant
Packing and delivery :
Packing : 10-15 pcs per Carton ,Size : 44cm*47cm*50cm
Delivery : 15 working days after confirmed
Packing | Delivery |
